Bag Shape Options
1. Pillow bag
2. Gusset bag
3. Flat bottom stand up bag
4. Quad seal stand up bag
5. Brick shape bag
6. Bag with hanging hole
7. Bag with easy tear notch
Main Options
1. Date printer
2. Quad seal bag assembly
3. Bag-in-bag configuration
4. Flat bottom bag assembly
5. Hole punch (Euro slot or round)
6. Load shelf
7. Product settler
8. Gas flush
9. Static elimination
10. Tear notch
11. In-feed and take-away conveyors
12. Integration with variety of printers, metal detectors, label applicators, and checkweighers
Functions & Features Of Milk Powder VFFS Machine
1. Vertical Forming: The machine forms a vertical tube from a flat roll of packaging material (usually a flexible film). The tube is created by sealing the edges of the film, forming a continuous cylinder.

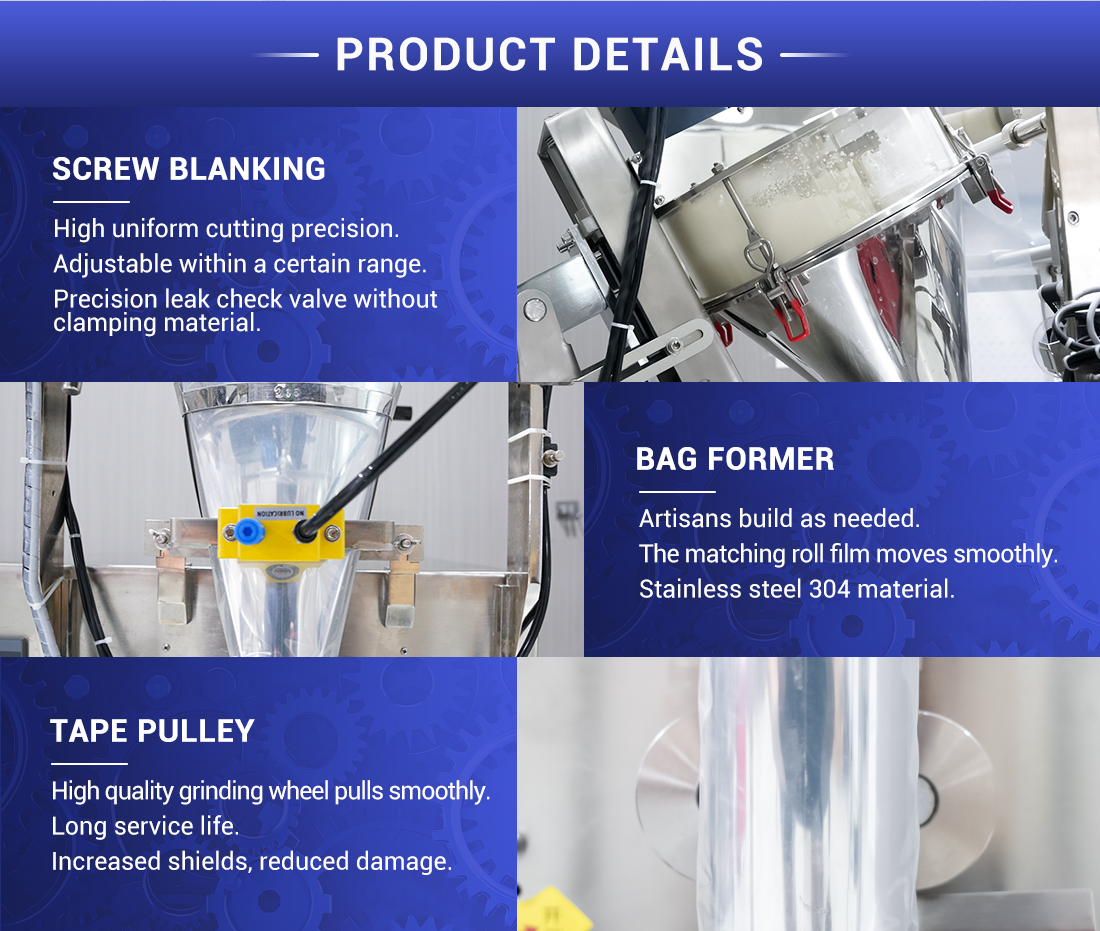

Filler System: For milk powder, an auger filler or a volumetric cup filler is commonly used. The auger filler measures and dispenses a precise amount of milk powder into each pouch, while the volumetric cup filler uses pre-measured cups to fill the powder.
2. Film Roll Unwinding System: The machine is equipped with a film roll unwinding system that supplies the packaging material. The film is pulled down and shaped into the vertical tube, ready to be filled.

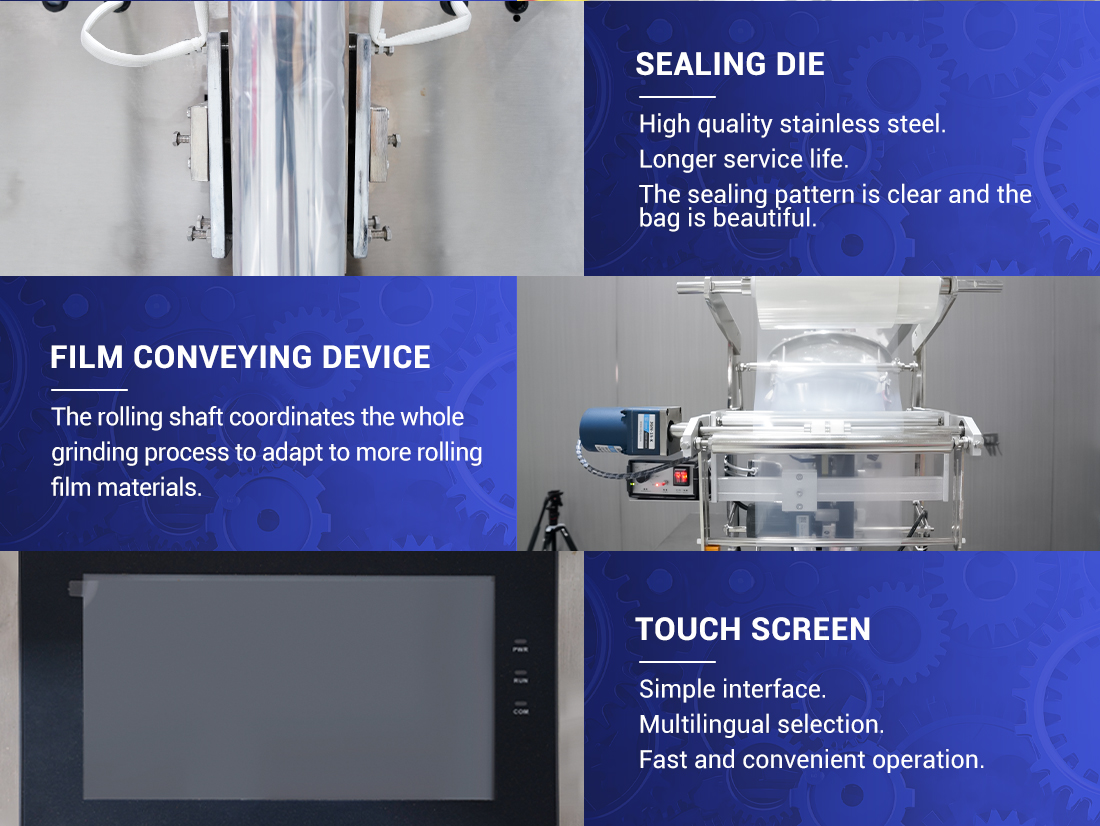

Sealing Mechanism: The top and bottom ends of the vertical tube are sealed to create individual pouches. The sealing mechanism may use heat sealing or impulse sealing, depending on the type of packaging material used.
3. PLC Control and HMI: The machine's operations are controlled by a Programmable Logic Controller (PLC), which provides precise control over the packaging process. The Human-Machine Interface (HMI) allows operators to set parameters, adjust settings, and monitor the machine's performance.
4. Adjustable Bag Length and Width: The machine can be easily adjusted to produce pouches with different lengths and widths to suit specific packaging requirements.
5. Date and Batch Coding: A coding system is often integrated into the machine to print essential information on each pouch, such as the date of manufacture, expiration date, batch numbers, and other product-related details.
6. Safety Features: Safety measures, such as emergency stop buttons, safety interlocks, and safety guards, are incorporated to ensure operator safety during machine operation.
